Fully Automatic Water Level Controller for Submersible Start and Stop Button Type Starter Panel with One Float Sensor(White,IT184WLC)

Package Contains:

    FULLY AUTOMATIC WATER LEVEL CONTROLLER MODEL NO-IT184WLC

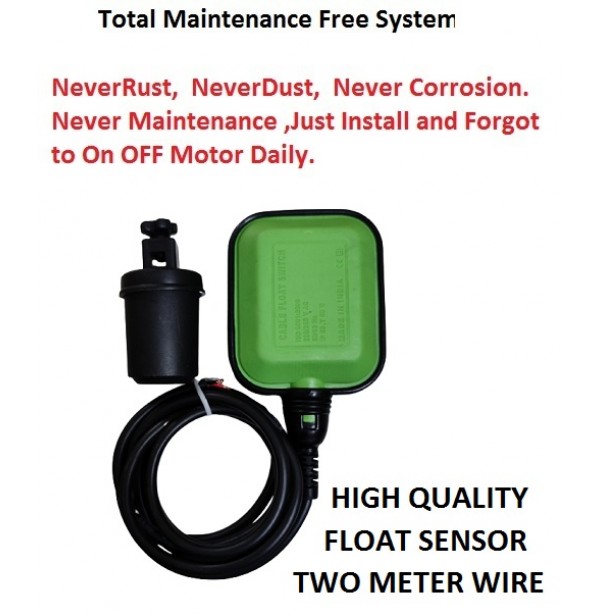

    ONE NOS FLAOT SENSOR FOR UP TANK .

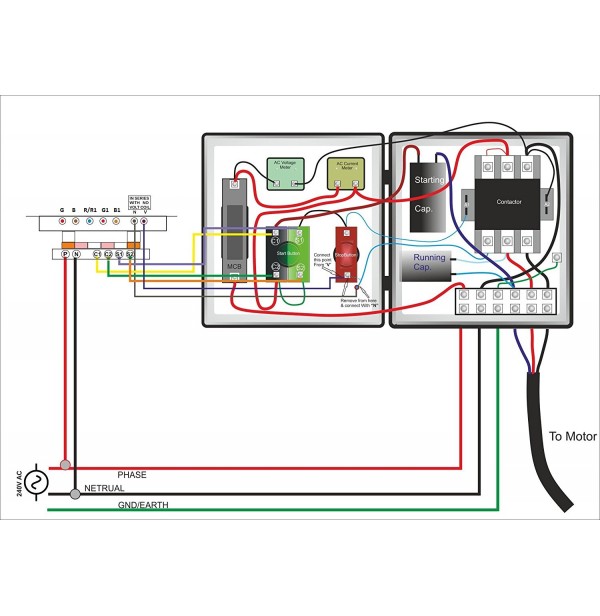

    USER DIAGRAM

Working:

    Fully Automatic Water Level Controller For Tank . This Model Will Automatically Switch ON And Automatically Switch OFF The Motor.

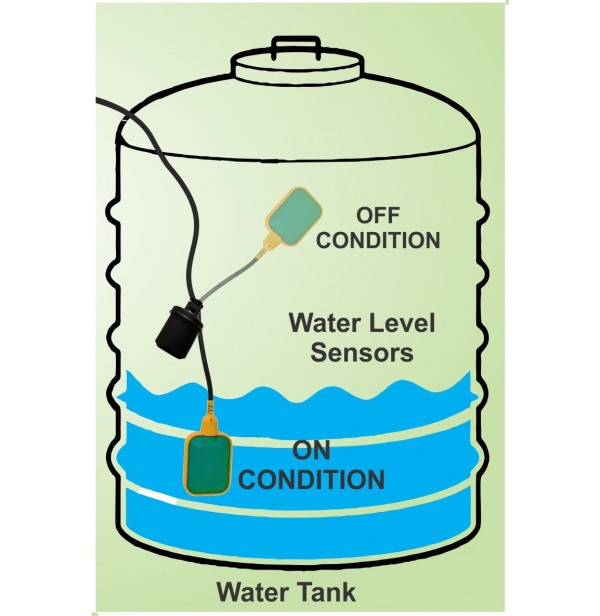

    AUTO ON When Water Level Goes Down Below Low Sensor And AUTO OFF When Water Level Touch to Top Sensor.
    Suitable For Motor Pump Up to 5 Hp Operated By A Normal ON/OFF Switch / MCB. Also Suitable For Push Button type Starter .
    Suitable For Ground Tank To Overhead Tank ,we can skip ground tank if no use . Has LED Indications For Motor ON.
    Has MANUAL Mode And AUTO Mode Functions. In AUTO Mode, AUTO ON And AUTO OFF Operation Occurs. In MANUAL Mode, The Motor Pump Will Be Constantly Running When Press Green Start Button And Stop When Press Red Stop Button .
    Long Life. Easy To Install. Advanced Embedded Technology.

Specifications:

    Operating voltage 220-250 volts AC. (Single Phase )
    Frequency 50 Hz.
    Load capacity each switch (5 HP)
