Smart WiFi Based Fully Automatic Water Level Controller & indicator For Overhead tank with Tank Full and Tank Empty Buzzer .

Model No: IT56WLCW

Wi-Fi Based Fully Automatic Water Level Controller

1. PACKAGE CONTENTS

- IT56WLCW Wi-Fi Based Fully Automatic Water Level Controller & Indicator Unit

- 5 × Stainless Steel (SS) Probe Sensors

- User Manual with Wiring Diagram

2. PRODUCT OVERVIEW

The IT56WLCW is a Wi-Fi enabled fully automatic water level controller designed for

domestic and industrial applications. It monitors overhead tanks

and controls the motor automatically to prevent overflow . The unit supports

three control modes (Automatic, Semi-Automatic, Manual) and integrates with the

Smart Life mobile app for monitoring and scheduling motor operation.

3. TECHNICAL SPECIFICATIONS

Parameter Value

Input Voltage 220–250V AC, Single Phase

Frequency 50 Hz

Load Capacity Up to 2 HP Motor

Relay Rating 20A Heavy Duty

Sensor Type Stainless Steel Probe Sensors

Wi-Fi 2.4 GHz (Smart Life App)

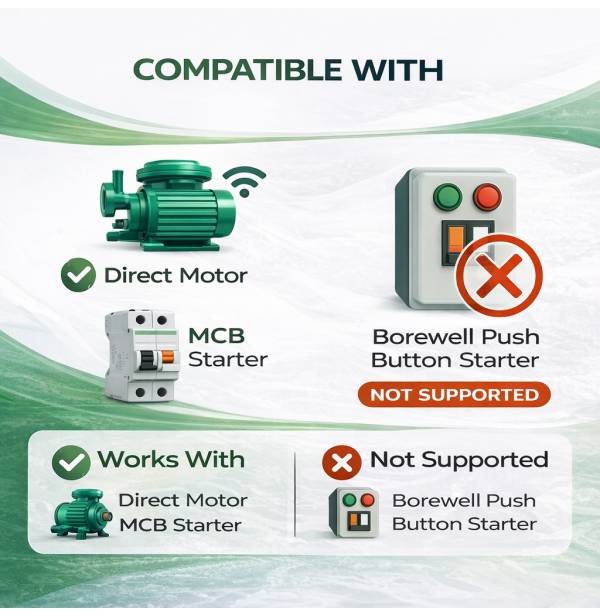

Compatibility Direct Motor or MCB Starter Panel

(Not for Push Button or Multi-Capacitor Panels)

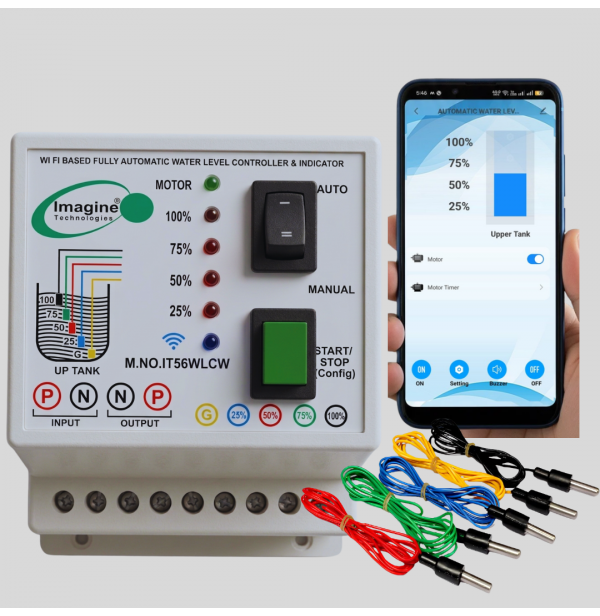

4. LED INDICATIONS

LED Meaning

Green LED Motor ON/OFF Status

Red LED (100%) Overhead Tank Full Level

Red LED (75%) Overhead Tank High Level

Red LED (50%) Overhead Tank Med Level

Red LED (25 %) Overhead Tank Low Level

Blue LED Wi-Fi Status: Fast Blinking = Config Mode,

Stable = Connected, OFF = Not Connected

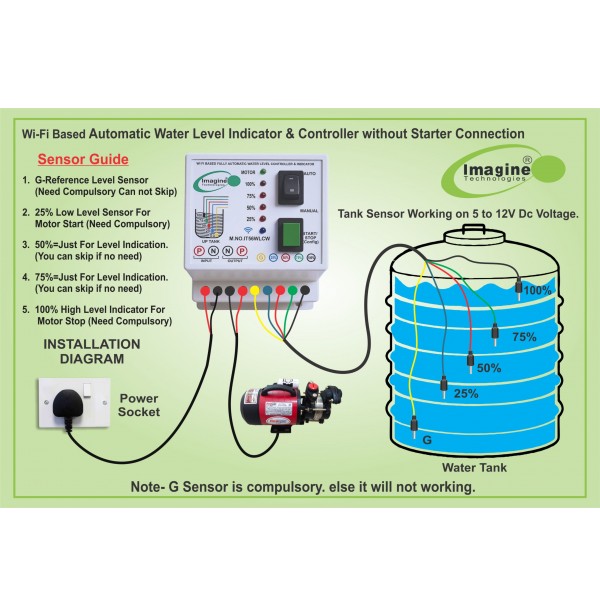

5. WIRING & INSTALLATION

1. Mount the controller near your motor or distribution panel on a flat, dry surface.

2. Connect Input Terminals (P, N) to 230V AC power supply using MCB.

3. Connect Output Terminals (P, N) to motor input or MCB type starter panel.

(Do not use with push-button or multi-capacitor starter panels.)

4. Install 5 stainless steel probe sensors inside tanks:

- Overhead Tank (5 sensors):

• 100% – Full Level (Stop motor)

• 75% – High Level

• 50% – Med Level

• 25% – Low Level (Start motor)

• G – Common ,Reference Sensor (bottom)

5. Use proper 5-core cable to connect probes to controller terminals (G, 25, 50, 75, 100).

6. Ensure tight and insulated wiring connections.

Terminal Label Description

Input P, N 230V AC Power Supply

(through MCB)

Output P, N Motor/Starter Panel

Connection

Tank Sensor  (G, 25, 50, 75, 100). Overhead Tank Probes

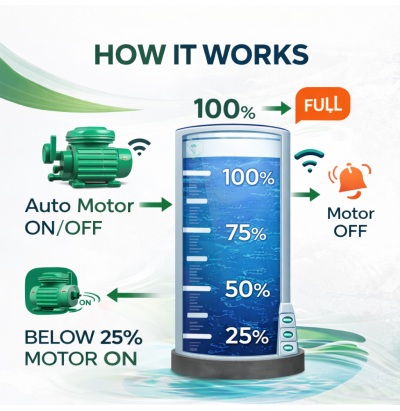

6.OPERATION

The IT56WLCW supports three operating modes along with mobile app integration.

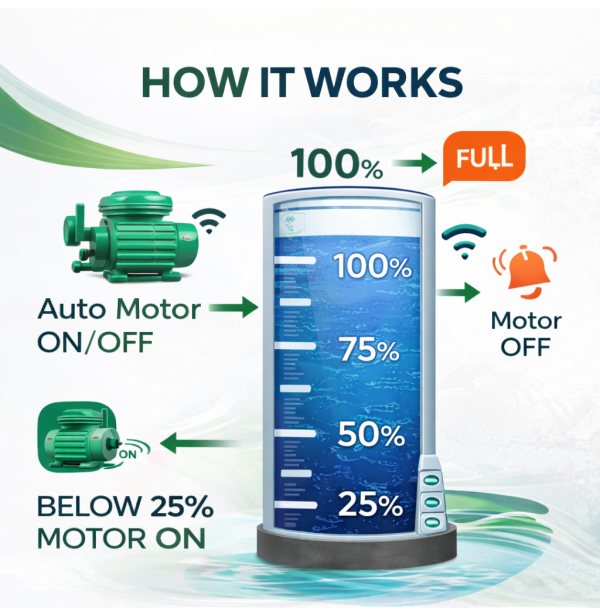

Automatic Mode

- Motor starts automatically when overhead tank is empty (25%  probe exposed).

- Motor stops automatically when overhead tank is full (100%  probe submerged).

Semi-Automatic Mode

- User must start the motor manually using the Green Push Button or Mobile App.

- Motor will stop automatically when overhead tank is full (100%  probe submerged).

Manual Mode

- Motor can be manually turned ON or OFF using the Green Push Button or Mobile App.

- No automatic stop function. User must stop the motor manually to prevent overflow.

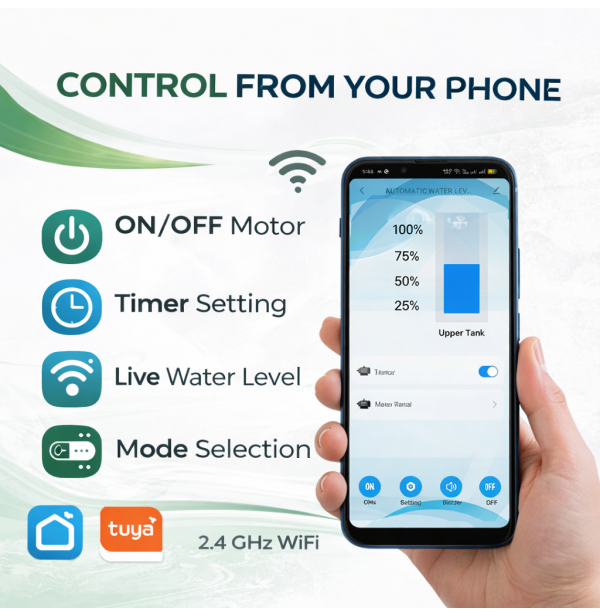

Mobile App Control

- This device works with the Smart Life App (Android/iOS).

- To configure Wi-Fi, press and hold the Green Push Button for 5 seconds.

The Blue LED will blink rapidly indicating Wi-Fi configuration mode.

- Stable Blue LED = Wi-Fi connected successfully,

OFF Blue LED = Wi-Fi Not connected .

- In the app, you can:

• Monitor overhead and underground tank levels in real-time.

• Check motor ON/OFF status.

• Switch between Automatic, Semi-Auto, and Manual modes.

• Set ON/OFF schedule timers for the motor & Buzzer On Off Button.

- Alexa/Google Home Integration For Motor :

• Link Smart Life account to Alexa/Google Home.

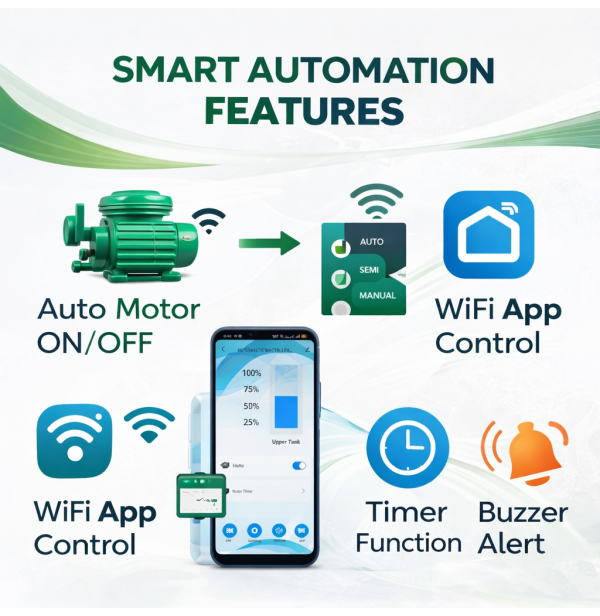

7. FEATURES

- Wi-Fi based motor control via Smart Life App.

- Real-time tank level and motor status monitoring.

- Auto, Semi-Auto, and Manual modes available.

- Schedule timer for motor ON/OFF from app.

- 4 Level LED indicators for motor and tank levels.

- Buzzer alerts for low and full tank levels.

- Longer life with no moving mechanical parts.

- Works up to 2 HP Motor.

8. IMPORTANT NOTES

- Only use with MCB type starter panel or direct motor connection.

- Do NOT connect with push button or multi-capacitor starter panels.

- Ensure sensors are properly dipped in water for accurate detection.

- Use proper gauge wires for motor and sensor wiring.

- Keep sensor and power wires separate to avoid interference.
