Fully Automatic Water Level Controller and Indicator With Dry Run Protection & Maintenance Free Magnetic Sensor

Package Contains:

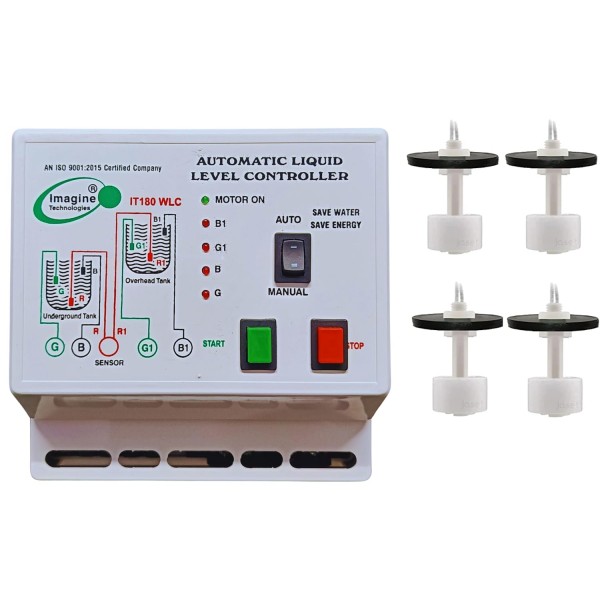

• FULLY AUTOMATIC WATER LEVEL CONTROLLER WITH DRY RUN PROTECTION MODEL NO-IT180WLCM WITH USER MANUAL.
• TWO FLOAT SENSOR FOR UP TANK AND TWO FLOAT SENSOR FOR DOWN TANK .

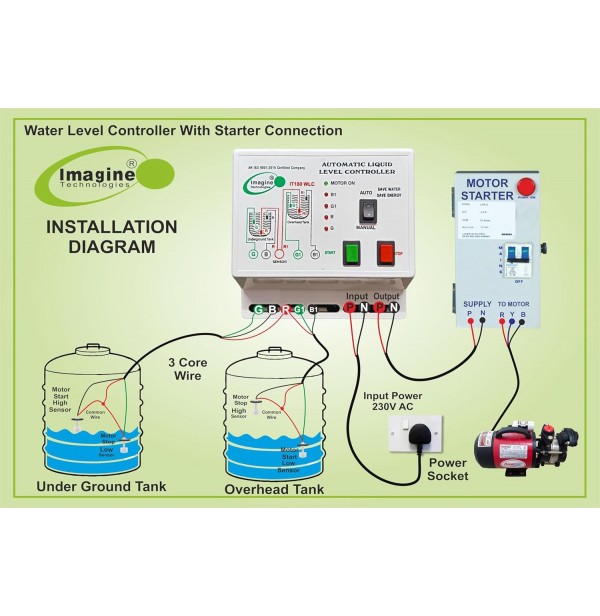

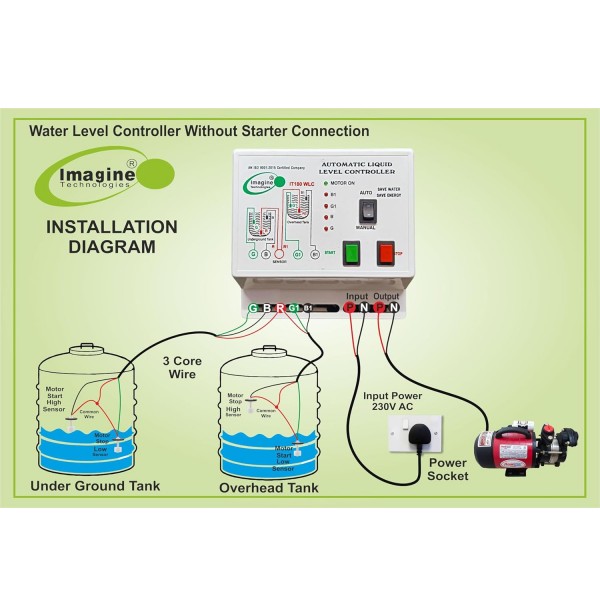

• USER DIAGRAM

Working:

• Fully Automatic Water Level Controller For Tank . This Model Will Automatically Switch ON And Automatically Switch OFF The Motor.
• AUTO ON When Water Level Goes Down Below Low Sensor And AUTO OFF When Water Level Touch to Top Sensor.
• Suitable For Motor Pump Up to 2 Hp Operated By A Normal ON/OFF Switch / MCB. Also Suitable For Electronic Starter.
• Suitable For Ground Tank To Overhead Tank . Has LED Indications For Motor ON.
• Has MANUAL Mode And AUTO Mode Functions. In AUTO Mode, AUTO ON And AUTO OFF Operation Occurs. In MANUAL Mode, The Motor Pump Will Be Constantly Running When Press Green Start Button And Stop When Press Red Stop Button .
• Also Has High And Low Level LED Indications To Know .

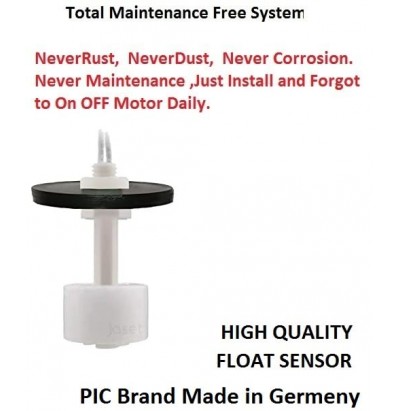

• Maintanance Free Magnetic Sensors.
• Fully Automatic Controller ,Micro Controller Based Design ,Power Failure protection.(Not Start Motor Every Time on Power Failure.) we provide Magnetic sensor so you no need maintenance for sensor .no corrosion no oxidation.
• No Man Power Required To Operate As Fully Automatic with 2HP capacity
• Longer Life No Mechanical System /.Avoid Overflow
• Easy To Install. Advanced Embedded Technology.

Specifications:

• Operating voltage 220-250 volts AC. (Single Phase )
• Frequency 50 Hz.
• Load capacity each switch (2 HP)
